Products

engine

portable genset

welder and genset

industry genset

water pump





gasoline engine I

Model
YM154F
YM168F
YM177F
YM182F
YM188F
YM190F
Engine Type
4-stroke,air-cooled OHV gasoline engine
Bore *stroke(mm)
54x38
68x54
77x58
82x64
88x64
90x66
Displacemen (cc)
87
196
270
337
389
420
Max Torque
4.8/2500
11/2500
17/2500
24/2500
24/2500
26/2500
Max hp at 3600rpm
2.8
6.5
9
11
13
15
Fuel
Vehicle use and unleaded gasoline
Lub.Oil
Four stroke excellent quality engine oil or motorcycle oil SAE 10 W-30
Start Mode
manual starting(recoil) or electric start
Dry weight(kg)
9.5
16
25
31
31
32
Dimension (mm)
300x290x280
313x376x335
380x430x410
405x452x450
405x452x450
405x452x450

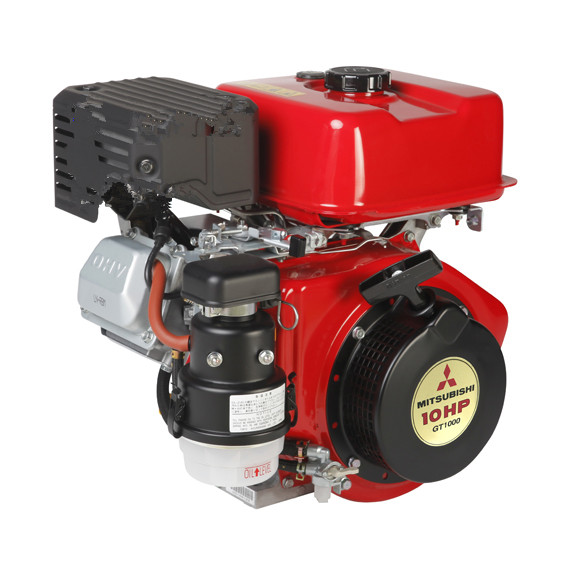

gasoline engine II (with Mitsubishi brand,2.4ps-13ps)

Model
GT241
GT400
GT600
GT1000
GT1300
Engine Type
4-stroke,air-cooled OHV gasoline engine
Bore *stroke (mm)
52x38
62x42
68x50
80x59
89x63
Displacemen (cc)
79.6
126
181
296
391
Max Output (PS)
2.4PS/3600rpm
4PS/3600rpm
6PS/3600rpm
10PS/3600rpm
13PS/3600rpm
Fuel
Vehicle use and unleaded gasoline
Fuel tank capacity
1.6L
2.5L
3.8L
6L
7L
Lub.Oil
engine oil or motorcycle oil SAE 10 W-30
Lub capacity
0.4L
0.6L
0.6L
1.2L
1.2L
Start Mode
manual starting or electric start
net  weight(kg)
9.5kg
13.7kg
15.8kg
27kg
35kg
Dimension (mm)
282x304x284.5
306x345x325
317.5x354.5x353
395.5x426.5x431
434.5x464.5x465
